DMC 1035V is a multifunctional machine allowing for machining of alignment, milling, boring, reaming under the CNC supervising, of medium pieces, with an accuracy of 0.005 / 500 mm, unique or in a prescribed cycle, with one handle.

       The center has a tool store that is fulfilled depending on the prescribed technology. The splinter edge is rectified always automatically, so that it is presented under the already mentioned accuracy.

       Technical specifications:

  • The main unit: 8000 rpm directly powered by an asynchronous engine.
  • Maximal torque (100 %): 57 Nm;
  • Maximal speed in the configuration mode: 800 rpm;
  • Thrusters for alternative current X, Y, Z axes;
  • Axis distances:
    • X axis: 1035 mm;
    • Y axis: 560 mm;
    • Z axis: 510 mm.
  • Axes resolution: 0.001 mm;
  • Tool attachment system: pneumatic;
  • No tools in tool store: 20 pcs;
  • Maximal tool diameter:
    • Without free space in the store: 80 mm;
    • With free space in the store: 130 mm.
  • Maximal tool weight in the store: 60 kg;
  • Working table:
    • Working surface: 1200 X 560 mm;
    • Maximal working piece weight: 1000 kg;
    • Charging height: 720 mm.
  • Boring transporter: yes;
  • Working air pressure:
    • Minimal: 6.5 bars;
    • Maximal: 8.0 bars.
  • Noise level: < 78 db;
  • Operating center dimensions:
    • Height: 2700 mm;
    • Length: 2657 mm;
    • Width (with transporter and lubricating tank): 3854 mm.
  • Center weight for 20 tools + working table: 4250 kg.

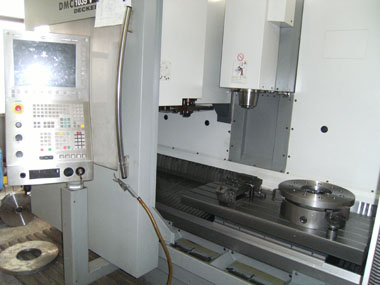

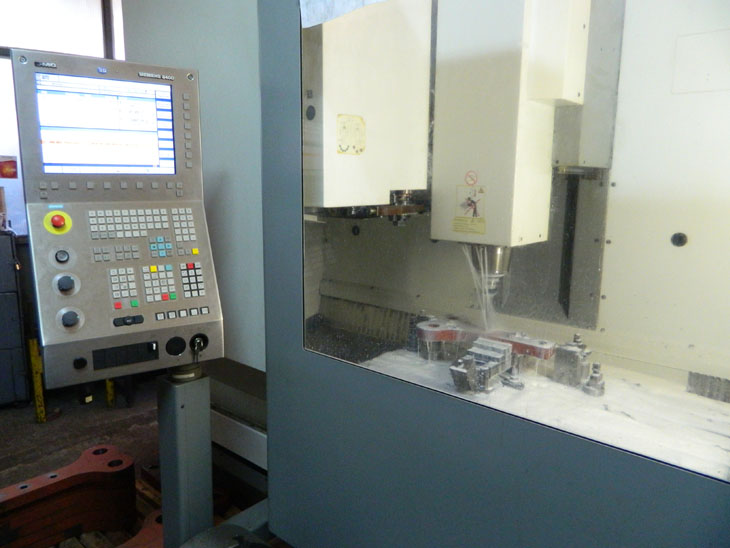

DMC 1035V
